Fabrication Unit
All critical processes are automated in the Production Unit
Plant Highlights :-
- Total Area – 17,000/- Sqm
- Covered Area – 5,200/- Sqm
- Monthly Capacity – 1500/- MT
- Max EOT Crane – 20 Ton
Products Catalogue
- Composite Plate Girder
- Pre-Engineered Building
- Open Web Girder
- Bow String
- Heavy Structural Fabrication
Applications
- High Rise Buildings
- Large and Complex Infrastructure projects
- Skywalks, Steel Bridges and Flyovers
- World Class Airport Terminals.
Various Sizes of Steel Girders Fabricated
- Flange 140 mm to 1,200 mm, Thickness 6 mm to 80 mm
- Web 180 mm To 3,000 mm, Thickness 6 mm to 60 mm
- Maximum Length 20 metres
Other Fabrication Works
Industrial Fabrication
Dome Shaped Roof at japuria Mall
Steel Structure Car Parking at Pittorahgarh
Walk way at ITO
LIST OF MACHINERY
| S. NO | Photo | Machine | Description |
|---|---|---|---|
| 01 |  |

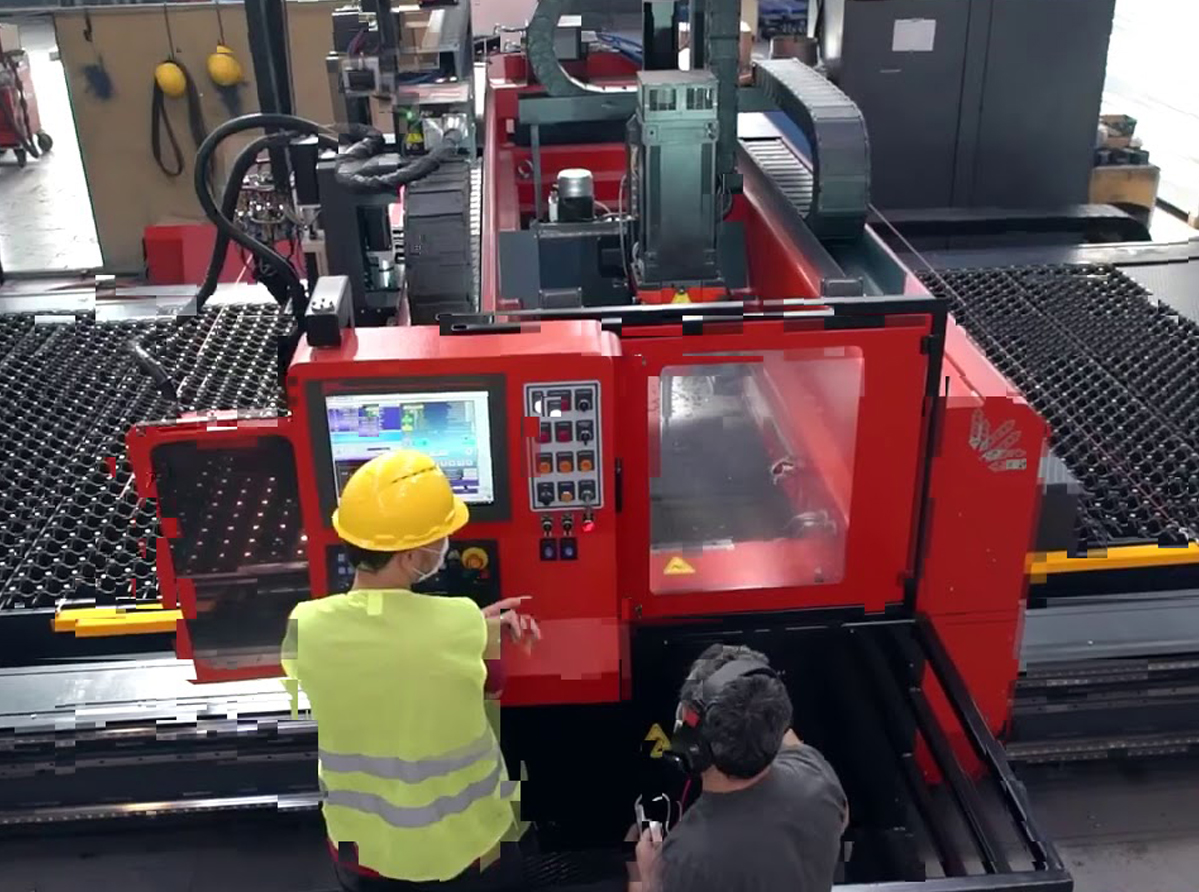

CNC Profile Cutting Machine (Weld arc Haryana) | 15m*4m Bed, 5 Back Torch |
| 02 |  |
CNC Plate Drilling Machine | 80 mm Hole upto 100mm Depth |
| 03 |  |

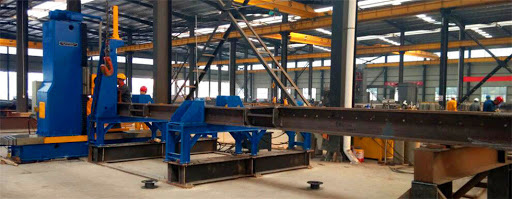

Automatic Beam Assembly Machine | Flange And Web Centring and assembling |
| 04 |  |

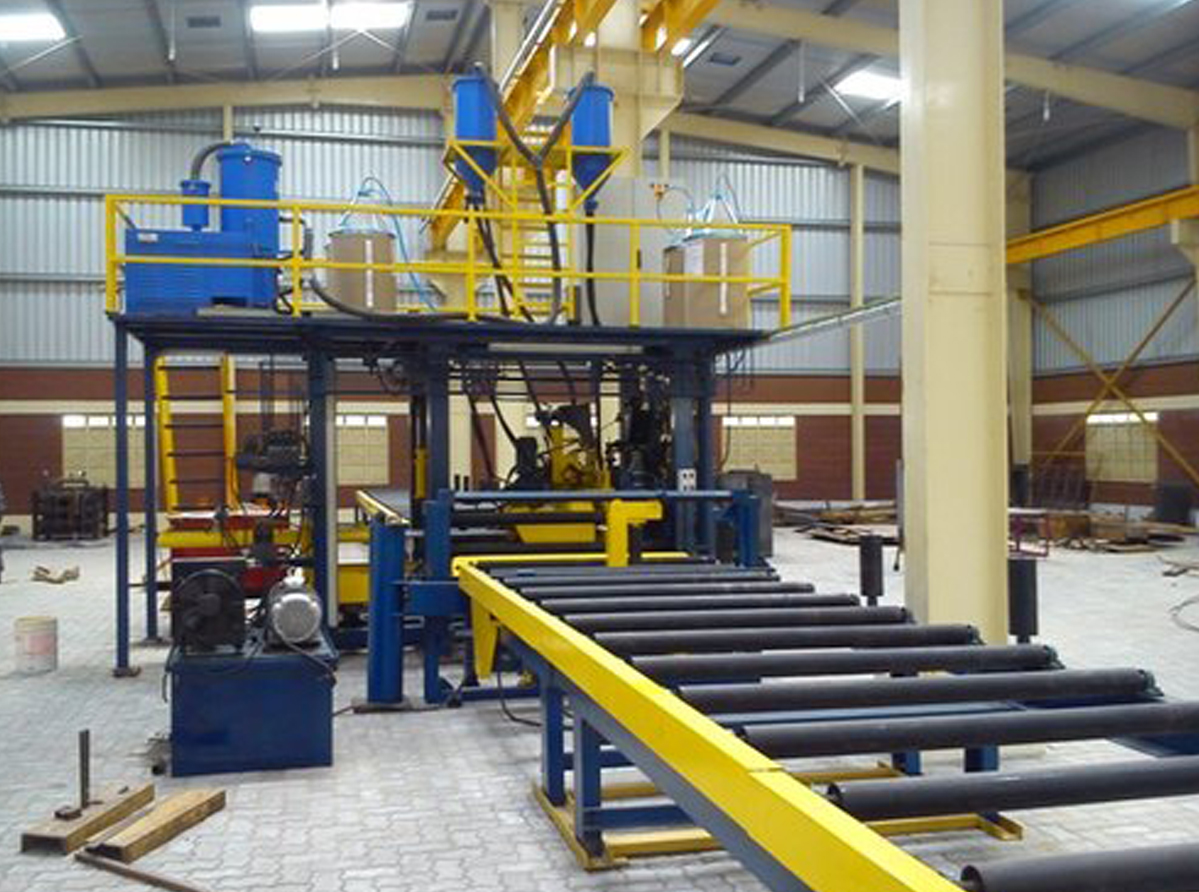

Automatic Submerged Arc Welding Machine | Upto 3mtr Height I Girder |
| 05 |  |

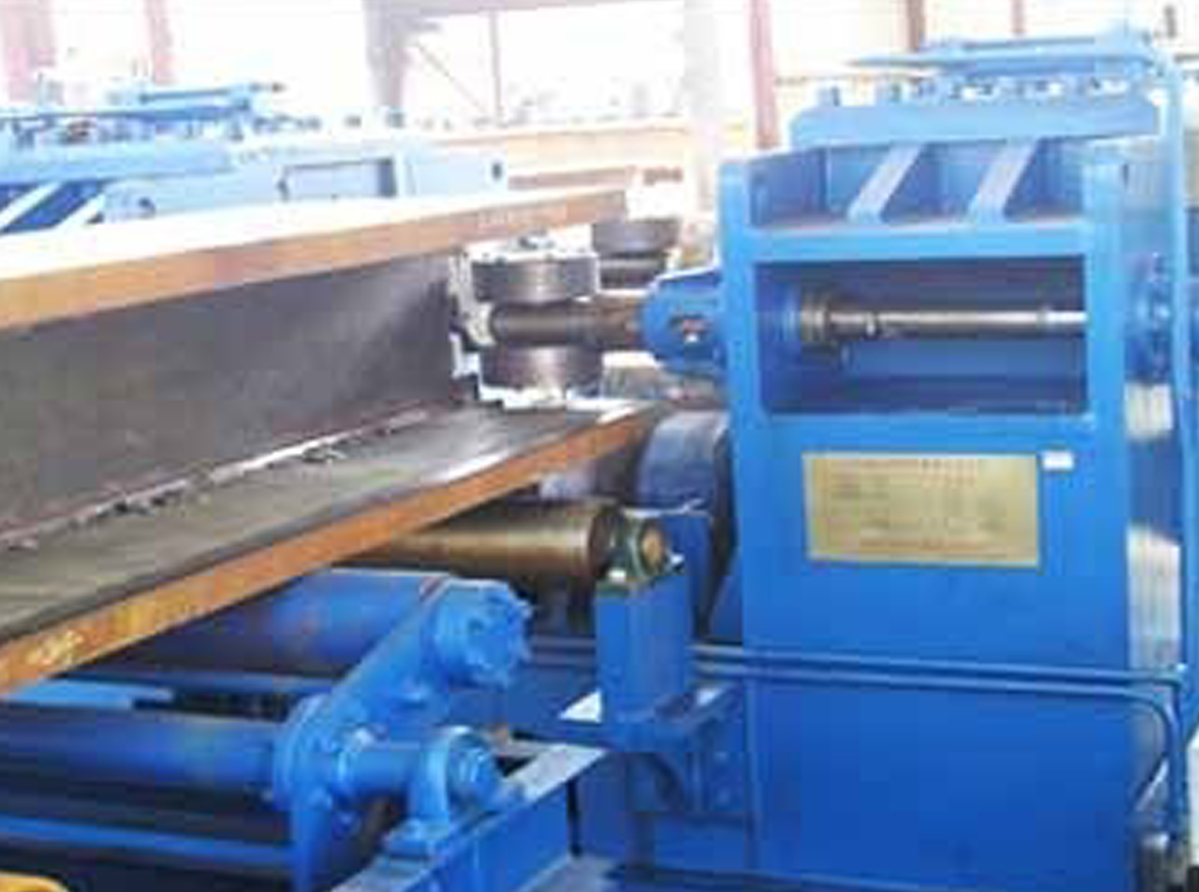

Hydraulic I Section Straightening Machine | Flange and Web automatic centering & Straightening |
| 06 |  |
Submerged Arc Welding
Machine (Electra Koko Tawa, Noida) |
1200 Amp |
| 07 |  |
Hydra Crane (ACE) | Upto 20 Tons |
| 08 |  |
Mig Welding Machine (Electra Koko Tawa, Noida) | 600 Amp |
| 09 |  |
Radial Drill Machine (APT Delhi) | 5ft Ht, Arm -90cm, 50mm Drill |
| 10 |  |
Magnetic Drill Machine (KPT, UP) | D32mm, 80mm Hole |
| 11 |  |

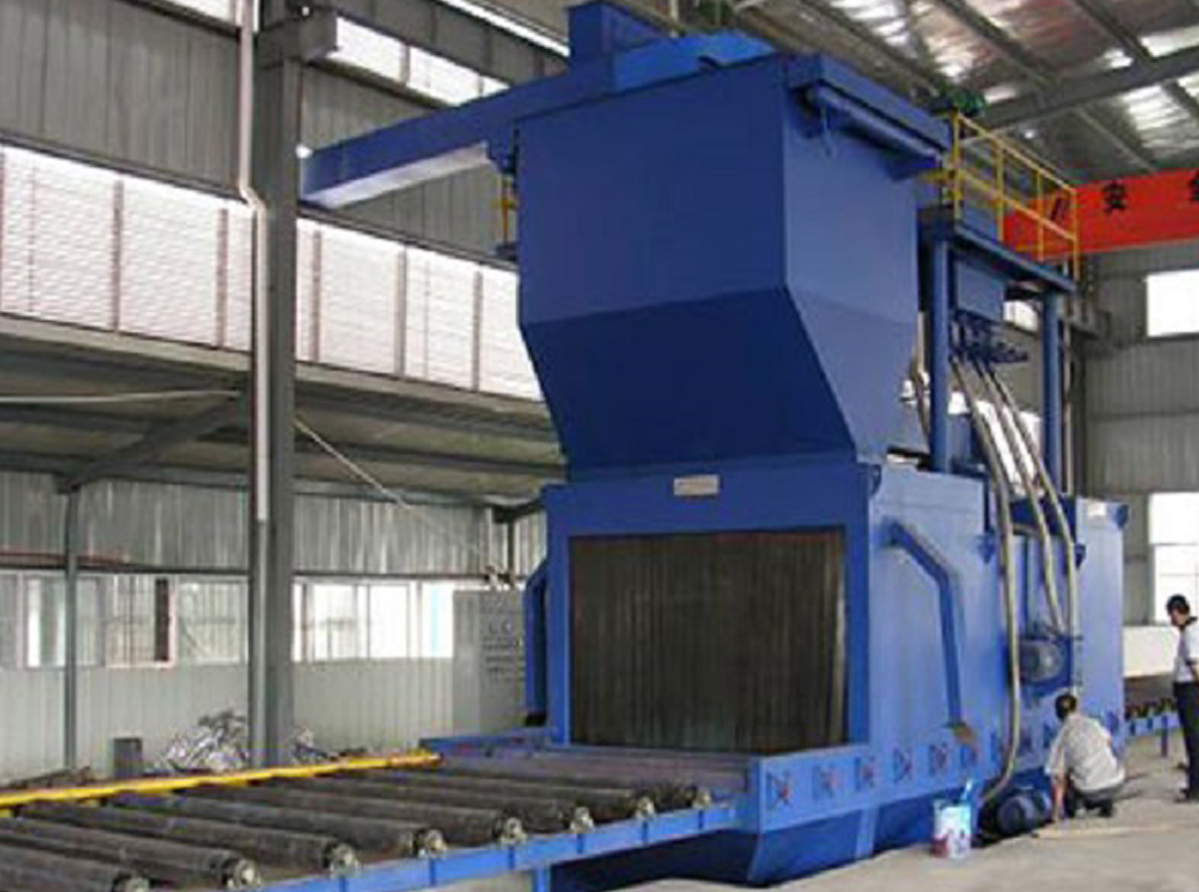

Shot Blasting & Chamber with Hoper, Compressor, Nozzle, Metalizing Gun with Flow Meter | 250cfm, 7Kg/sqcm |
| 12 |  |
Airless Painting Machine (Graco, USA) | |
| 13 |  |
End Milling Machine (Jatindera Industrial Ludhiana) | 2.1m*1.5m |
| 14 |  |
Grinder Machine | 7 inch |
| 15 |  |
Plate Straightening Machine (Rizcon, UP) | 2mtr Wide |
| 16 |  |
Stud Welding Machine with Gun and Accessories (All Weld Solution, Delhi) | 2500 Amp |
| 17 |  |
Arc Welding Machine (Electra Koko Tawa, Noida) | 400 Amp |
